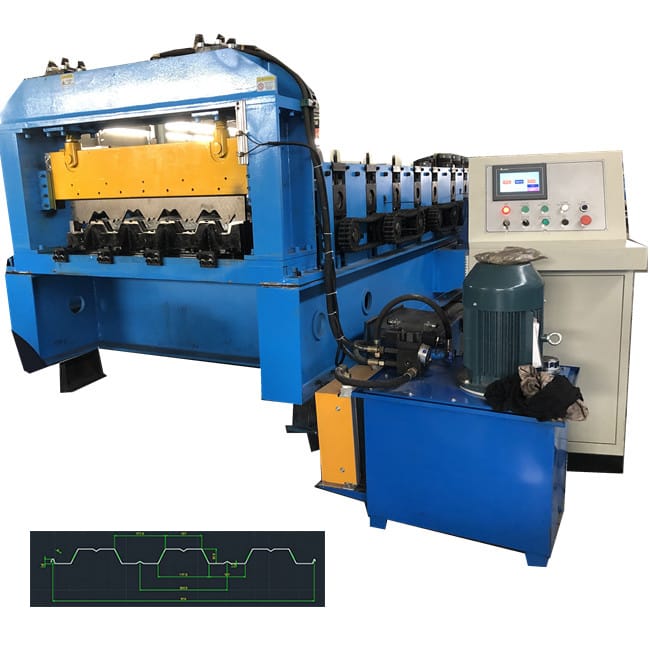

915 Metal Decking Roll Forming Machine

Introduction Floor Metal Deck Forming Machine For 915 using 1150mm input coil width is designed for making the metal decking sheets in batch and fully aromatically. Profile Drawing Machine Parameters Roller stations 24 roller station Roller
Products Inquiry

PRODUCT INFORMATION

Introduction

Floor decking corrugated roof roll forming machine

Floor Metal Deck Forming Machine For 915 using 1150mm input coil width is designed for making the metal decking sheets in batch and fully aromatically.

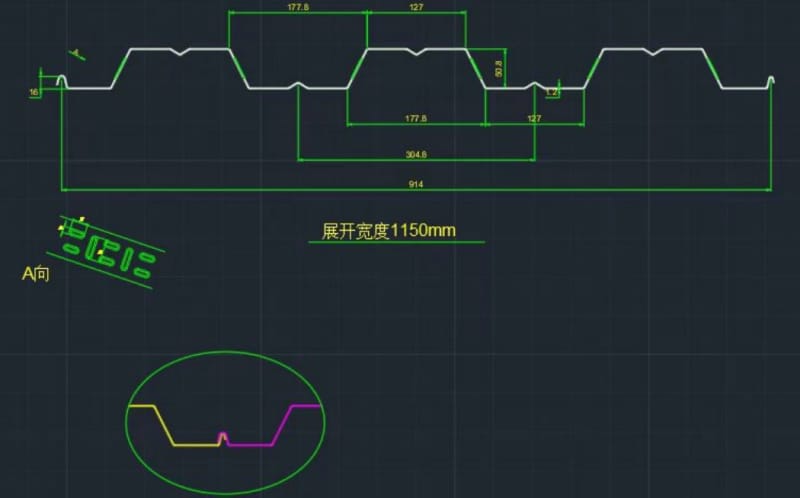

Profile Drawing




Machine Parameters

Roller stations 24 roller station
Roller material Gcr 15 steel after quenching processing HRC58-62℃, chrome plated surface
Shaft material 45# solid steel
Shaft diameter φ 85mm
Rolling speed 8-12m/min
Hydraulic cutting blade Gcr 12 Mov Chromed and quenched HRC 58-62
Hydraulic Cutting Power 5.5kw
Hydraulic Oil 46#
Transmission Chain
Electricity 380V, 50HZ, 3 Phrase (Customizable)
Forming motor power 18kw
Main structure Middle plate welded
Machine base frame 500# H steel welded
Color Blue & Yellow (Customizable)

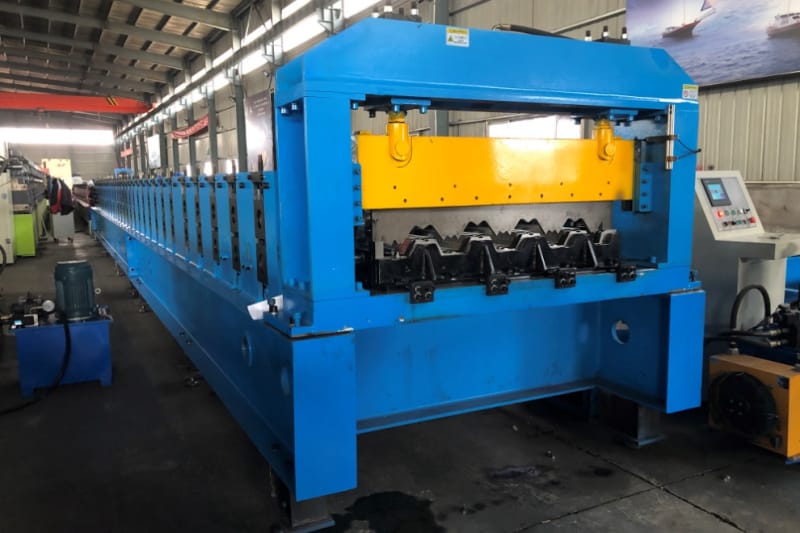

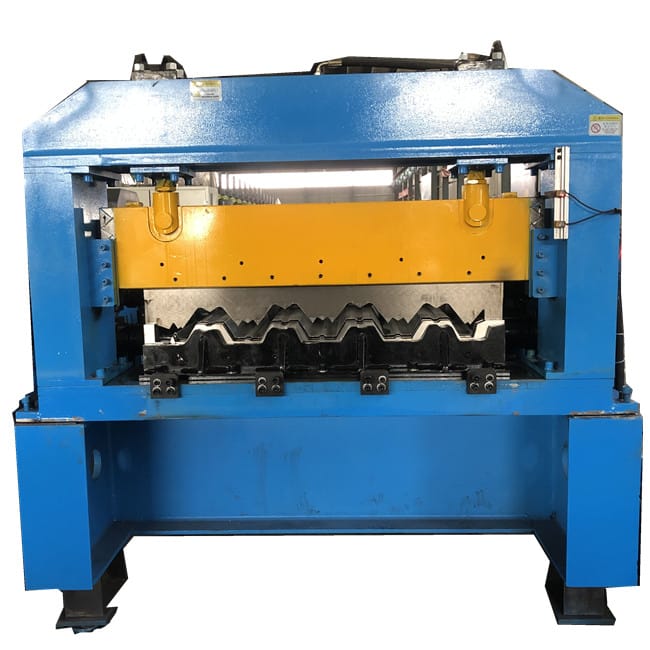

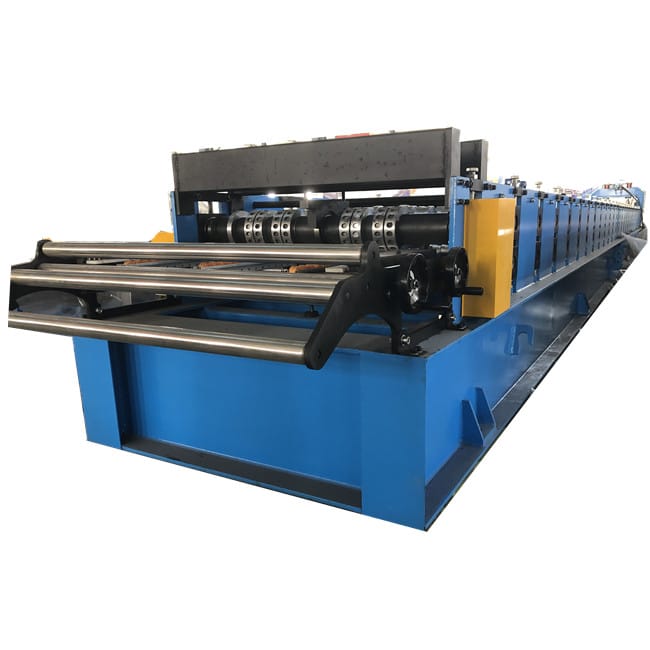

Machine Pictures

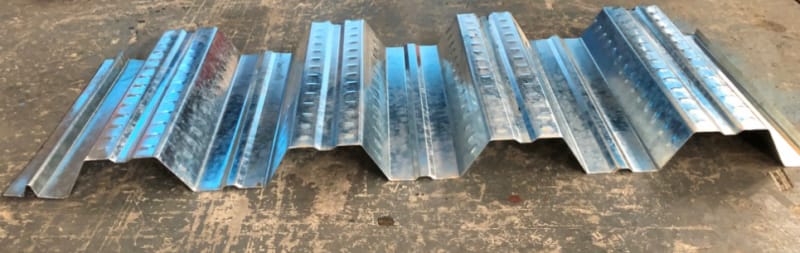

metal floor decking corrugated roof roll forming machine, roof sheet roll forming machine, is mainly used to produce floor decking panel /
corrugated roofing sheet. More information pls contact: Email: cnzt007@zhongtuocn.com WhatsApp/WeChat: 008615613740026
