Glazed tile roll forming machine testing

Introduction High speed glazed tile roofing panel roll forming machine will meet your production demand. The specification for the machine can be customized such as production speed, logo stamping, and more. Our machine equip with removable
Products Inquiry

PRODUCT INFORMATION

Introduction

High speed glazed tile roofing panel roll forming machine will meet your production demand. The specification for the machine can be customized such as production speed, logo stamping, and more. Our machine equip with removable switch, air break, radiator, transformer and electric leakage protector for operation convenience and safety. This machine is control by PLC system with world famous brand such as Mitsubishi Electric, Siemens, Delta to ensure flawless production wiht precision for a lifetime.

Profile Drawing



Machine Specifications



Roller stations
13 roller stations
Roller material

High grade 45# steel chrome treatment
Shaft material
40Cr soild steel
Shaft diameter
80mm
Working speed
0-12m/min
Hydraulic cutting blade
Gcr 12 Mov Chromed and quenched HRC 58-62
Hydraulic cutting power
5.5kw
Hydraulic oil
46#
Transmission
Gearbox
Voltage
380v 50hz 3phrase
Forming power motor
7.5kw
Machine structure 500# H beam
Color
 Blue & Yellow (Customize)

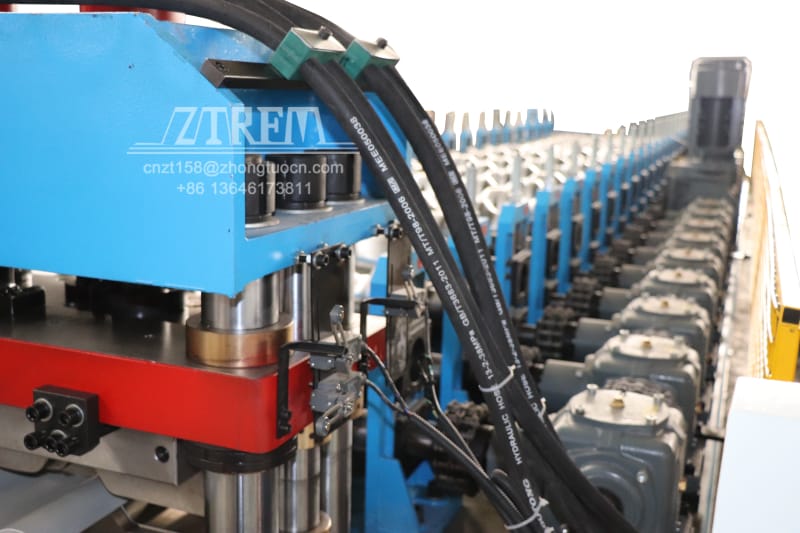

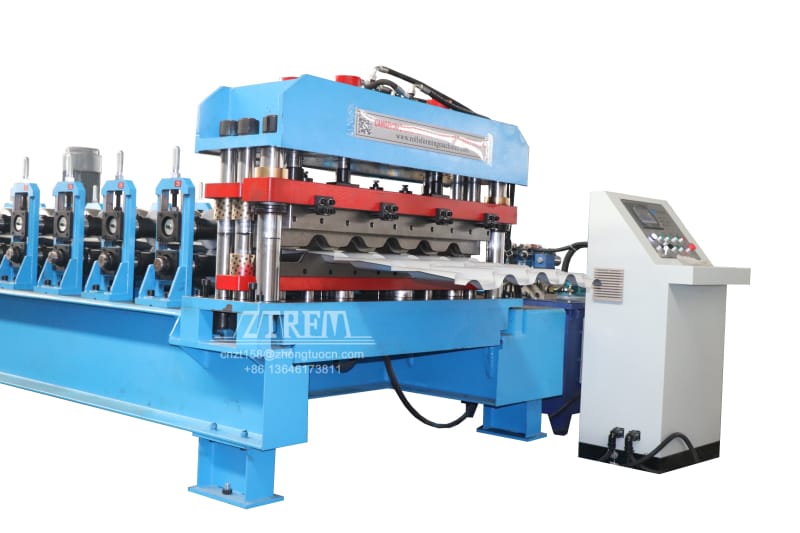

Machine Picture


Roof tile roll forming machine
